Description

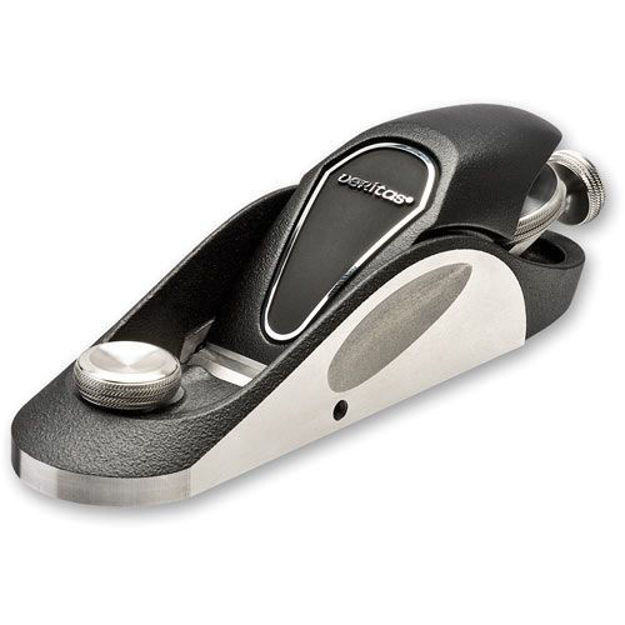

The body and lever cap of the Veritas DX60 block plane is ductile cast iron. This material is durable and stable, having been fully stressed relieved. All of the turned knobs and adjusters are made from stainless steel.
The body is very accurately machined and surface ground. The sole is flat, the sides are square to the sole and the bed is flat and square to the sides. All this is done to within 0.038mm (0.0015") maximum deviation. The large side wings increase stability for shooting and unique finger grip indentations provide comfort and control.
The adjustable mouth can be closed for fine shavings or opened for heavier cuts. Adjustment is done quickly and easily with a stainless steel front knob. A set screw behind the front knob can be used to lock in a setting so that the mouth can be opened to clear shavings and then returned to exactly the same position. The toe is completely enclosed by the body casting, a unique feature offering protection to the moveable toe.
The lever cap is shaped to blend with the body to give a smooth, secure and comfortable grip. The lever cap wheel (underneath the lever cap) can be easily set from a full locking position to a controlled friction setting for blade adjustment. The combined feed and lateral adjustment mechanism makes blade setting accurate and easy.
This 180mm long by 44mm wide plane has a 12° bed angle. The 35mm wide blade is 3.6mm thick and available in PM-V11. It comes with a two-angle bevel: a 25° primary bevel and a 23° relief bevel to ease re-sharpening. All that is required is to hone your preferred micro-bevel. The blade back has been lapped to be perfectly smooth, so it should never need lapping prior to sharpening. The lapped blades have a flatness tolerance of ±0.005mm or better over the working surface, and with an average roughness surface finish of 0.000127mm(5 microinches) or better.
